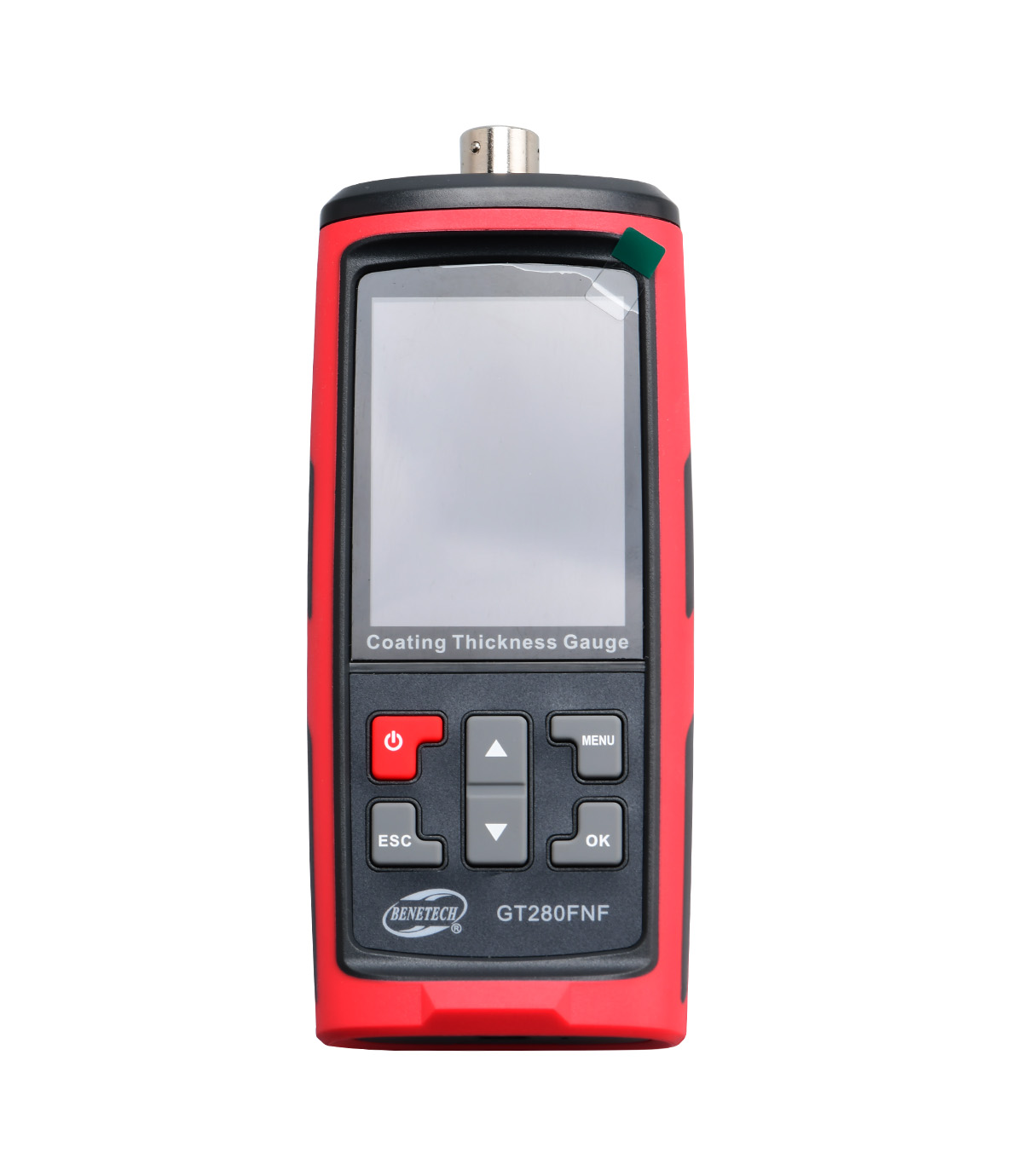

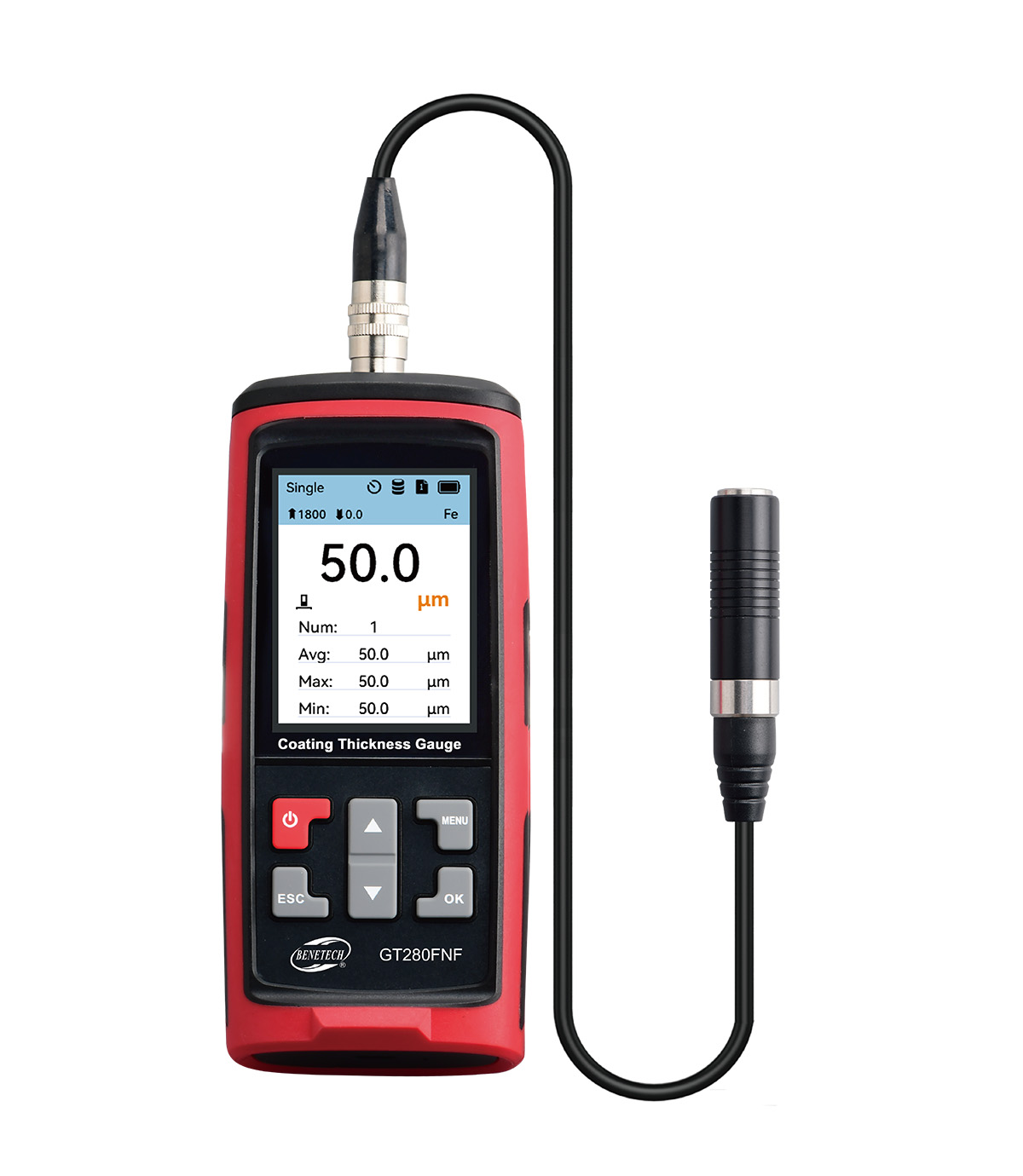

• 1.Menu-style operation with a color screen and high-definition display.
  2.Measurement of non-magnetic coating thickness on magnetic metal substrates and non-metal coating thickness on non-magnetic metal substrates.
  3.Offers both single and continuous measurement modes.
  4.Provides basic and zero-point calibration functions.
  5.Unit selection in µm or mil and automatic storage function.
  6.Automatic shutdown option.


• Measurement range	0~1800μm/70.8mil
  Resolution	<100μm: 0.1μm;≥100μm: 1μm;0.1mil
  Measurement error	≤150μm: ±5μm;>150μm: ±(3%H+1μm)
  Minimum diameter of magnetic metal substrate	12mm
  Minimum thickness of magnetic metal substrate	0.5mm
  Minimum radius of curvature of magnetic convex substrate	2mm
  Minimum radius of curvature of magnetic concave substrate	11mm
  Minimum diameter of non-magnetic metal substrate	50mm
  Minimum thickness of non-magnetic metal substrate	0.5mm
  Operating voltage	DC 3.7V (Lithium battery capacity 1000mAh)
  Product dimensions	150*65*35mm



• Please refer to the manual for details

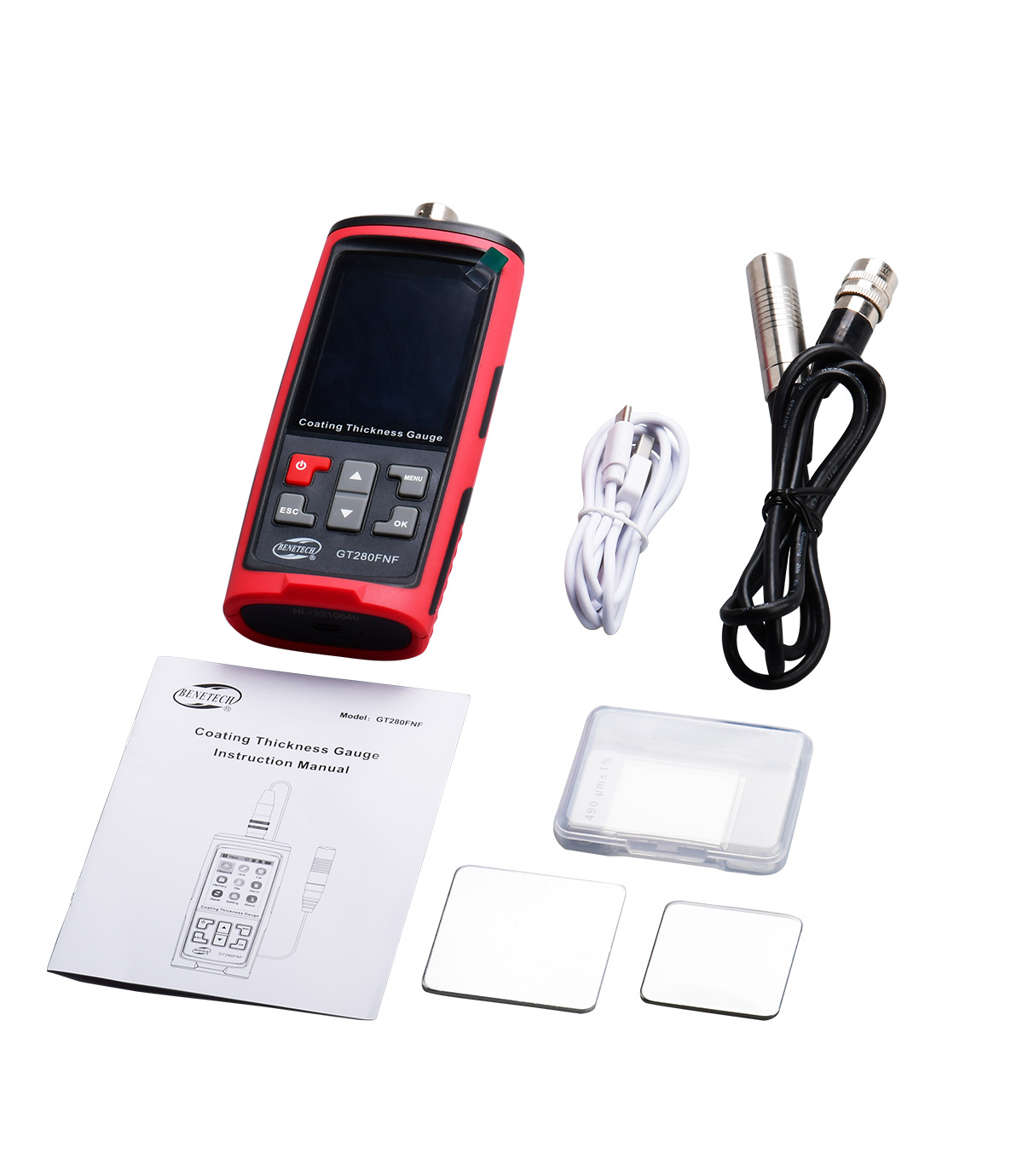

• Mainframe *1;
  Coating thickness measurement probe *1;
  Test piece (6 pieces)*1
  Test aluminum plate *1
  Test iron plate *1
  TYPE C cable *1

•
•
