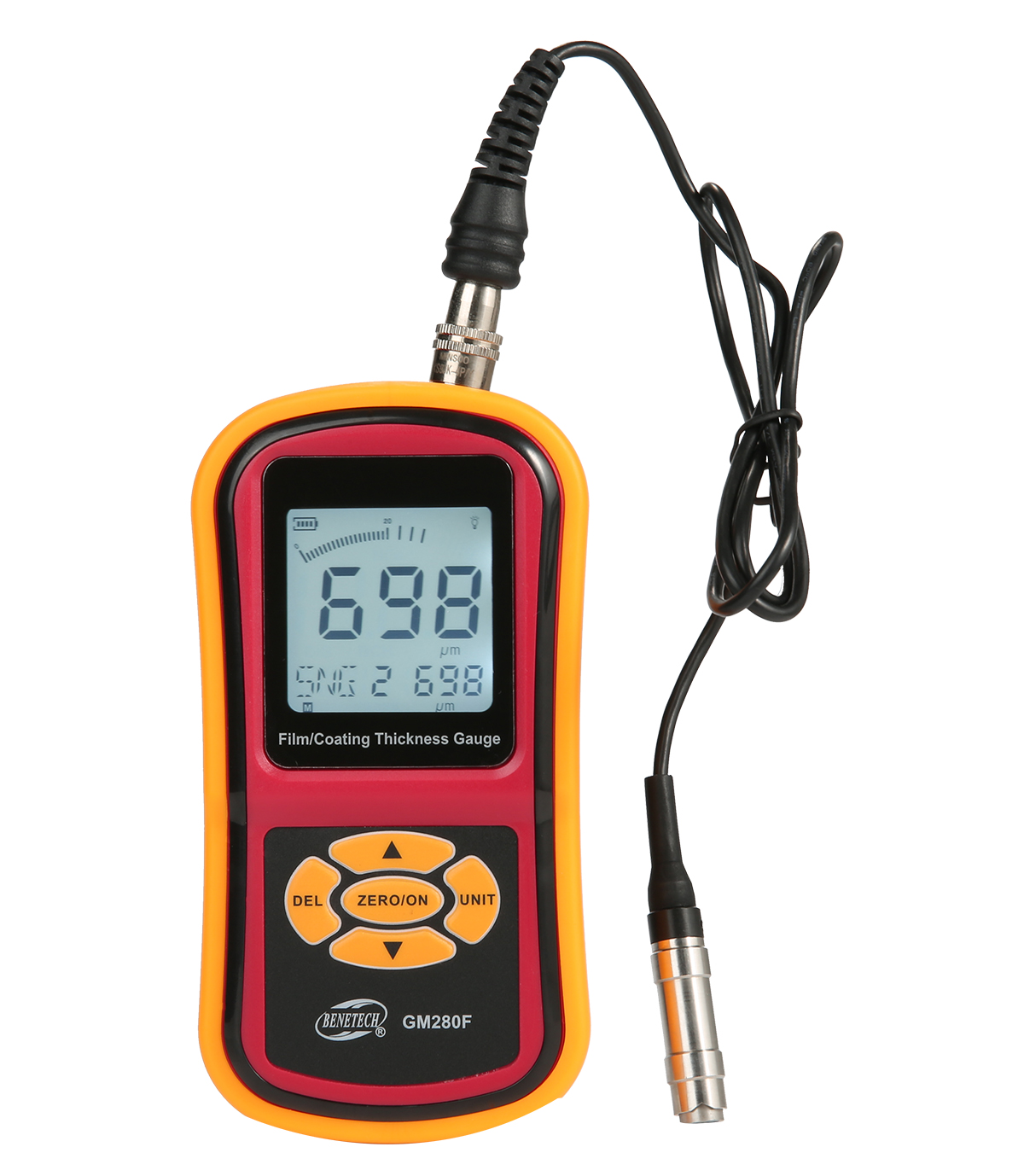

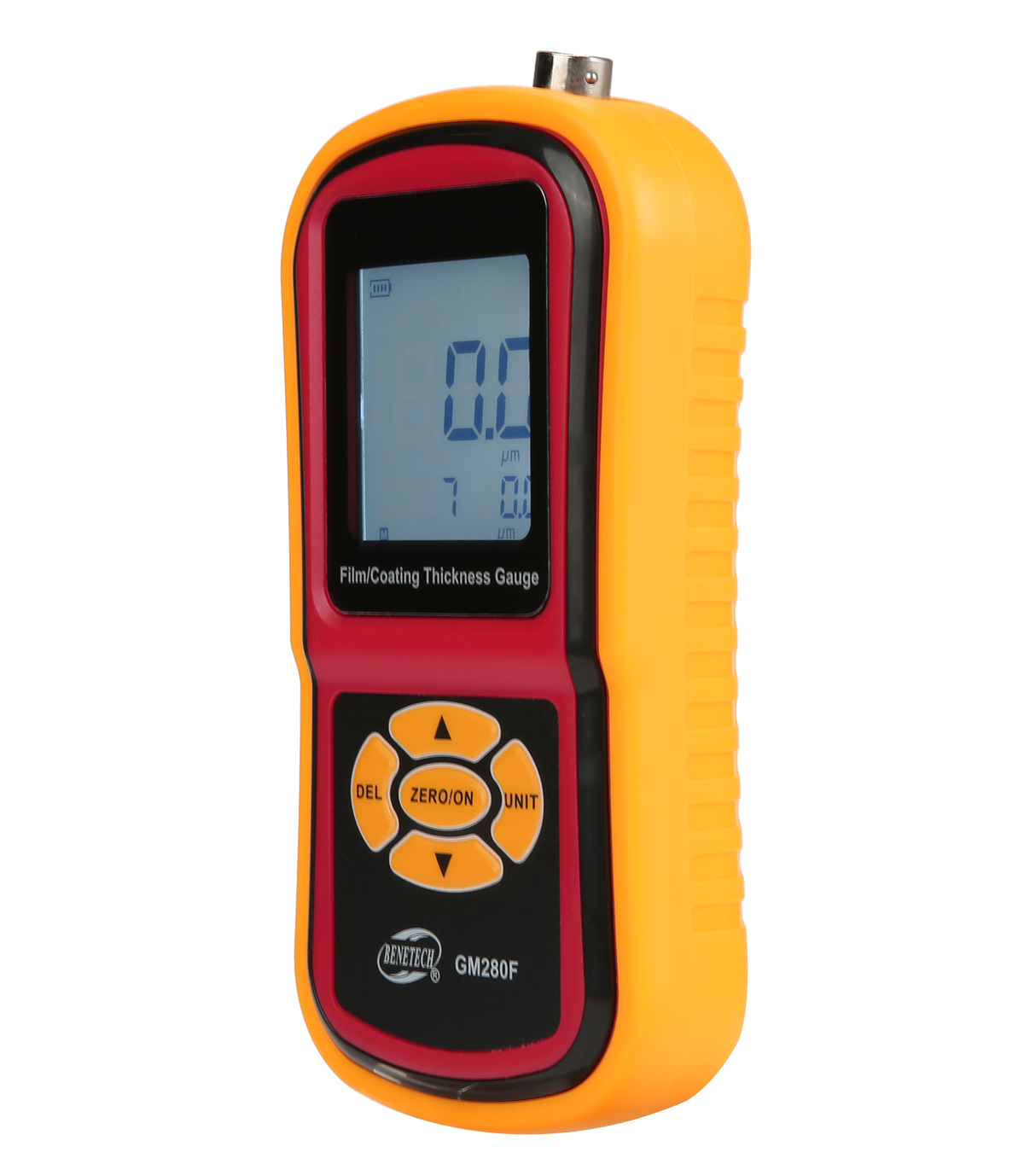

Film Coating Thickness Gauge GM280F

Home >
Products

Applying magnetic thickness measuring method, this unit can quickly and precisely measure the thickness of non-magnetic coating such as painting or electrodeposition on the iron magnetic substrate, and finds its wide application in the fields of manufacturing、metal processing，chemical industry and commercial inspection.

Features Specifications Applications Accessories Download Certification

sales@benetechco.com

Film/ Coating Thickness Gauge possesses the following features:

1.Providing visual readings and status of measurement
on LCD
2.Applying high sensitivity sensor for precise measurement
3.With zero-point, two-points, and basic calibration methods
to amend the system error quickly;
4.With single, continuous and compensation measuring
methods;
5.Capable of saving, reviewing and deleting the data
6.Able to delete the unreliable data in a measuring process
as well as the data all saved in unit
7.To save the maximum value, minimum value, average
value, standard compensation value and measuring times
8.Buzzer alert
9.Unit switch between the metric and Britain system;
10.Low battery indication
11.Automatically turning off
12.LCD backlight

Technical parameter	Technical index
LCD display	3 1 / 2 display
Power supply	3*1.5V AAA alkaline battery
Operation current	Around 25mA
Battery life	Continuously 20 hour
Auto off	1 min.
LCD backlight function	7 second
Operation temperature	0 to 40℃
Operation humidity	10 to 95%RH
Low battery indication	2.8V±0.2V
Product size	72x35x145mm
Weight	246.1g (without battery)

Please refer to the manual for details

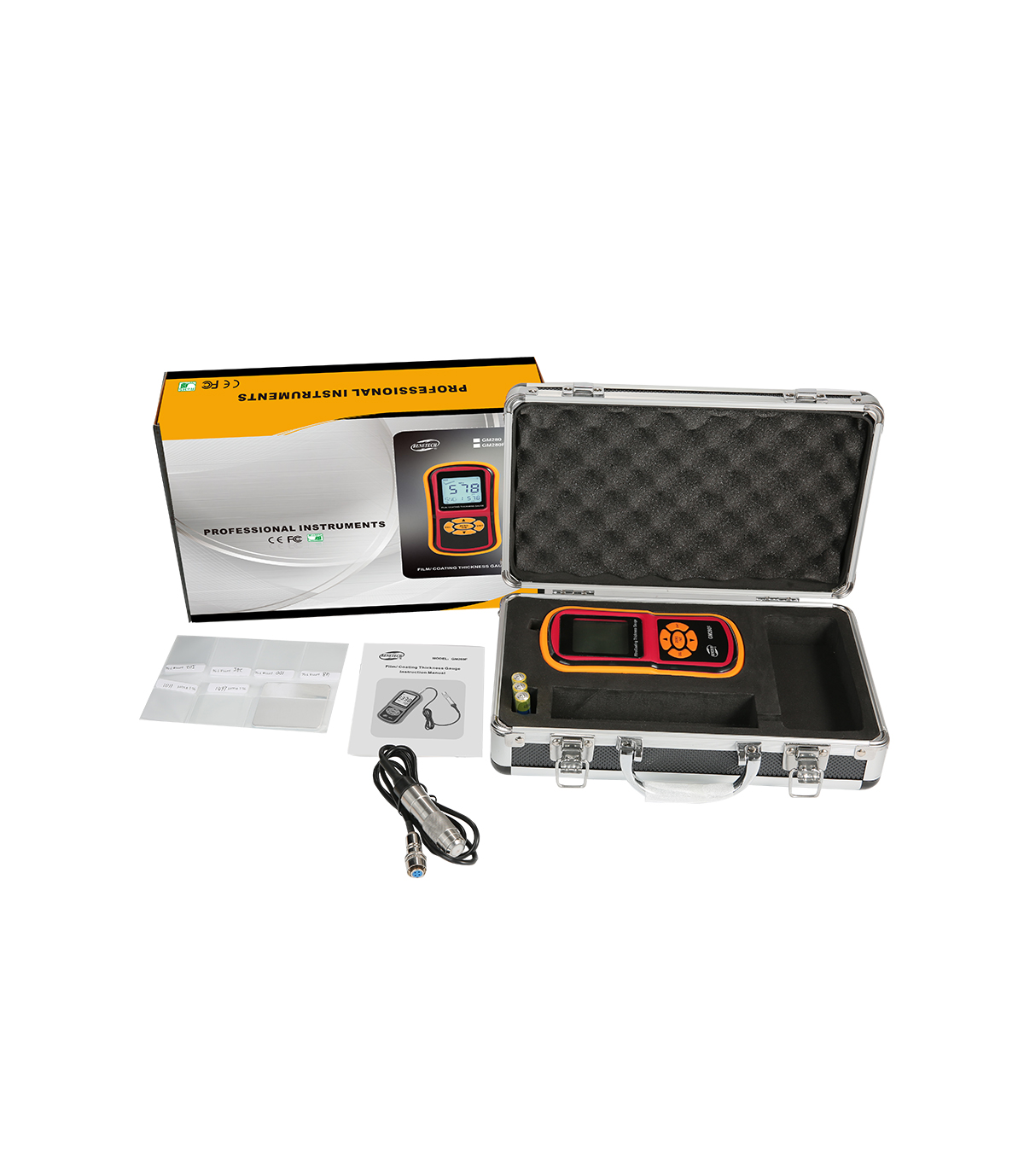

Digital coating thickness tester main unit*1
Sensor*1
1.5V AAA battery*3
English Instruction Manual*1
Standard sheet*6
Iron base material for calibration*1
PP Packing Box*1
