• 1. Measurement of vibration Accelerate, Velocity, Distance and Temperature
  2. Measurement acceleration High/low frequency selection
  3. Machine level selection feature included
  4. Maximum mode
  5. Data HOLD
  6. LCD backlight (steady on)
  7. Automatic/manual shutdown
  8. Temperature unit selection
  9. Measurement unit selection
  10. Lithium battery power, USB charging


• 	Range	Accuracy	Note
  Accelerate	0.1~199.9m/s2 peak	±5%±2digits	In the frequency range of  10Hz~1KHz (LO), 1KHz~3KHz (HI)
  Velocity	0.1~199.9mm/s rms		In the frequency range of  10Hz~1KHz (LO)
  Distance	0.001~1.999mm p-p		In the frequency range of  10Hz~1KHz (LO)
  Operating temperature	0~40℃(32~104℉)	±1.5℃(±2.7℉)
  Operating humidity	30~90%RH
  Vibration pickup	Piezoelectric ceramic accelerometer (shear-type)
  Displays update cycle	About 0.5 seconds
  Power	1000mAh 3.7V lithium battery
  Stand-by current	≤15μA
  Operating current	≤25mA
  Battery life	20H continuous use



• Please refer to the manual for details

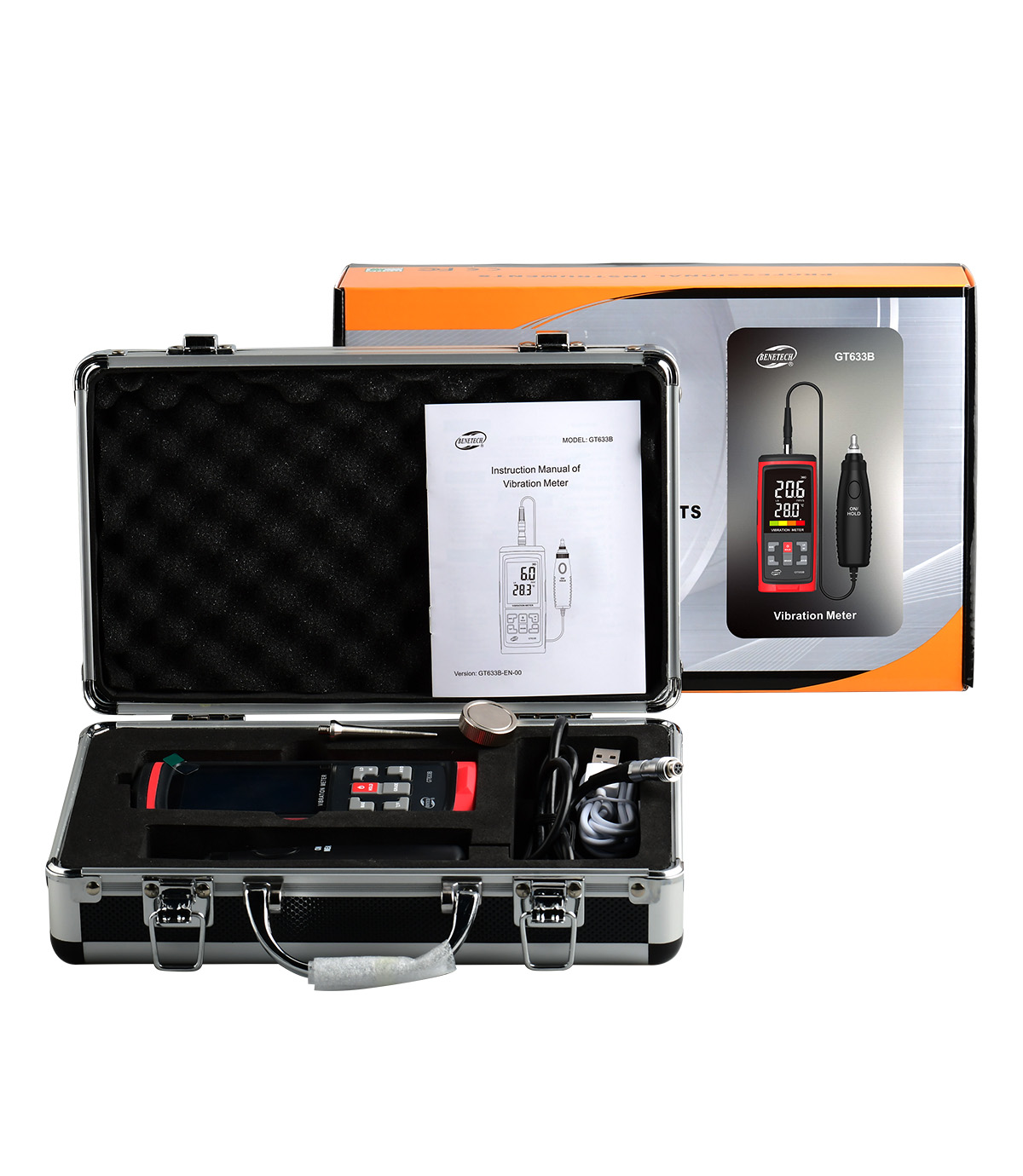

• Main unit*1
  Detector handle*1
  Instruction manual*1
  Detector probe accessorg (L)*1
  Detector probe accessorg (S)*1
  （Equiped on the main unit）
  Magnetic probe*1
  USB TYPE C*1

•
•
